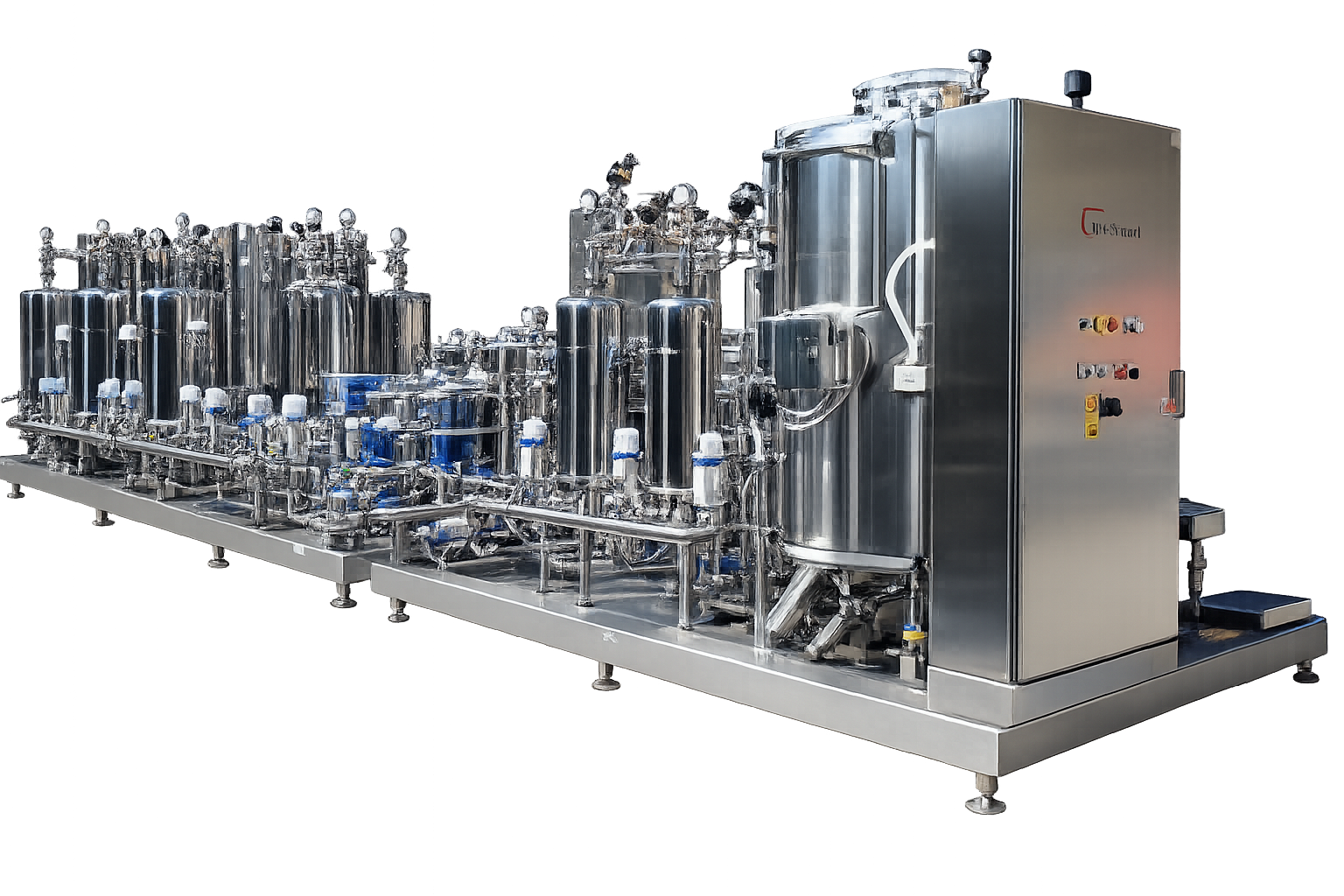

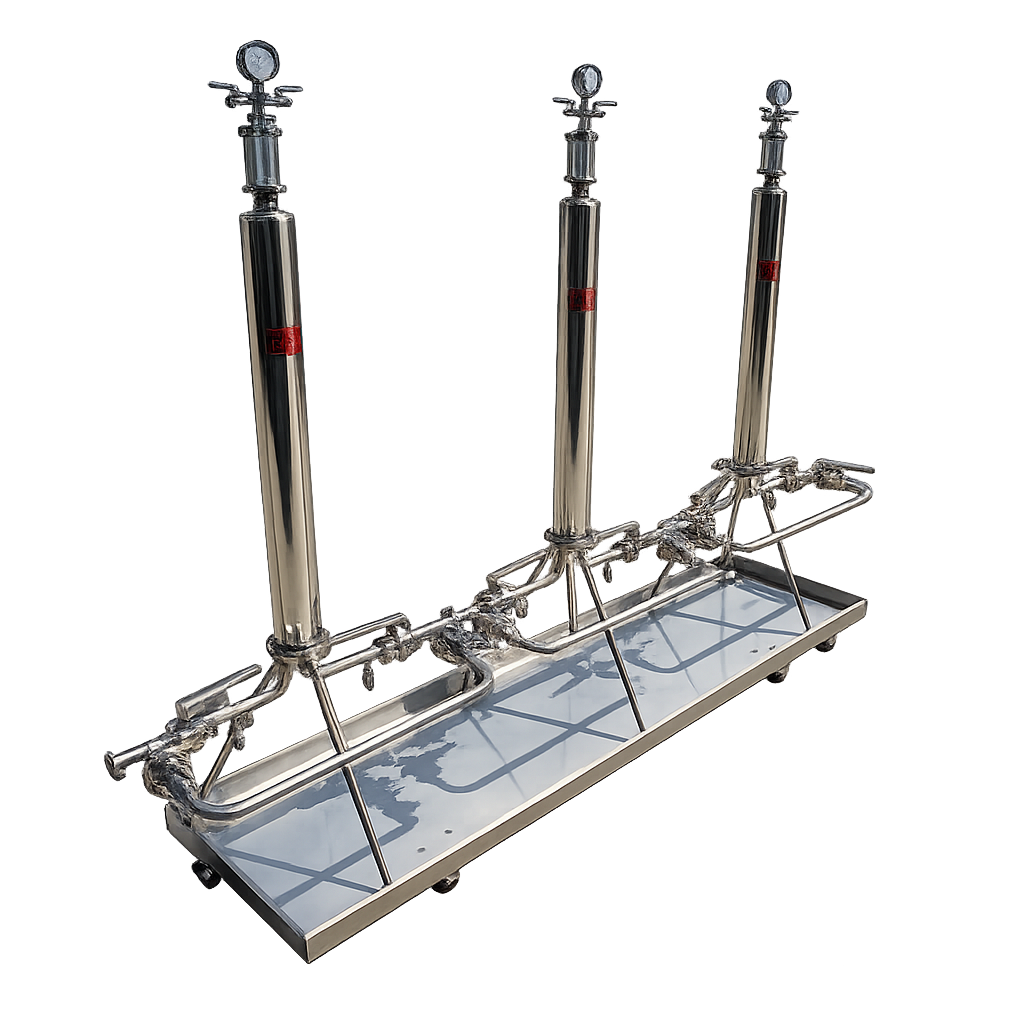

The bell housing filters containing internal cartridges for microfiltration are available in configurations ranging from a single housing unit capable of holding 1, 2, or 3 cartridges, up to more complex multi-housing battery systems, interconnected and mounted on a common support frame.

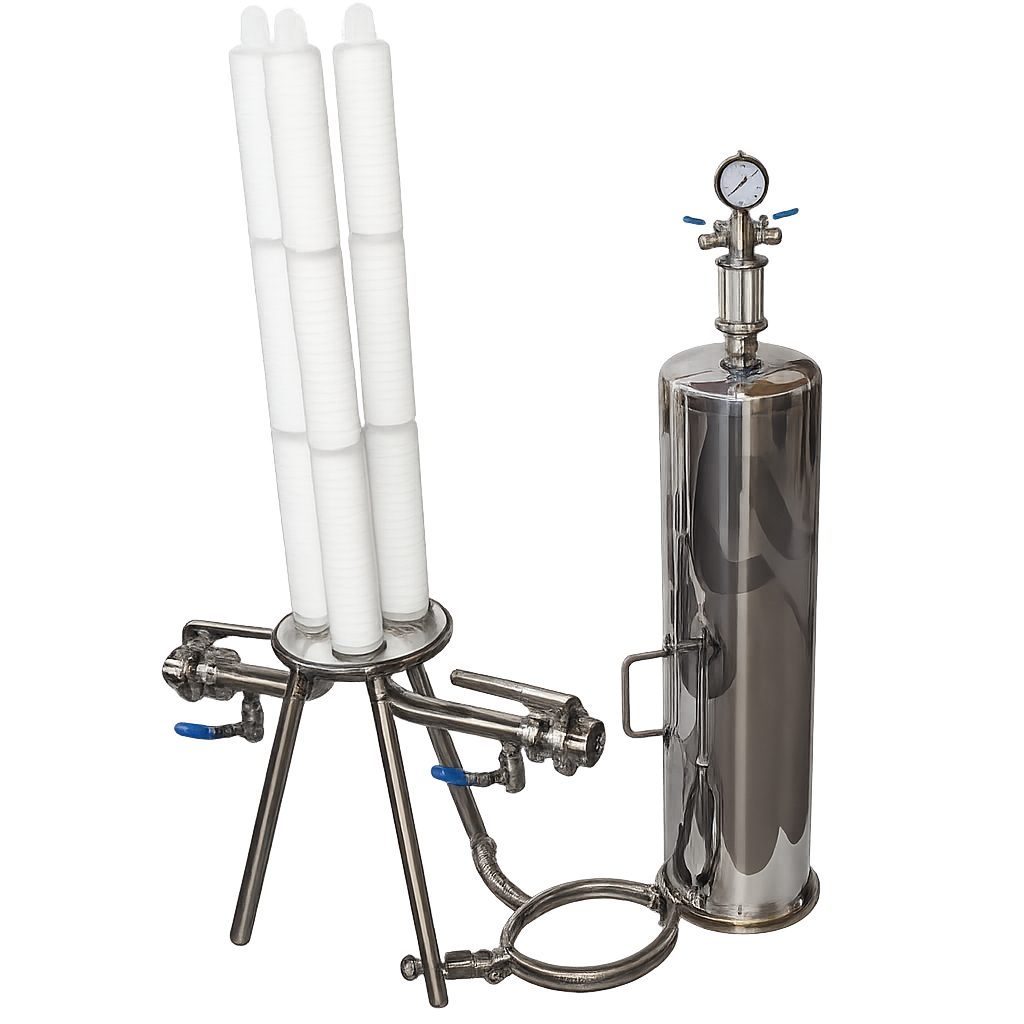

The microfiltration housing filter made of AISI 316 stainless steel, with a single housing designed for operation with 1 cartridge, is suitable for holding up to 1 P7 cartridge. The 3-cartridge version can accommodate a minimum of 1 and a maximum of 3 cartridges, with bayonet-type connection and a maximum cartridge height of 30”.
It is supplied with the following standard equipment:
Standard equipment:
- DMS bell housing stainless steel casing, code 7 – 2 channels, 3 x 30", inlet/outlet 1.5"
- Sanitary sight-glass valve, with 2 pressure gauges (0–6 bar)
- 1/4" ball valve with clamp connection
- Sample collection valve with clamp + clamp connection
- INOXPA 304 stainless steel butterfly valves, clamp connection 1.5" – discharge fittings – 2 pcs.
- Closing cap – 1 pc.
