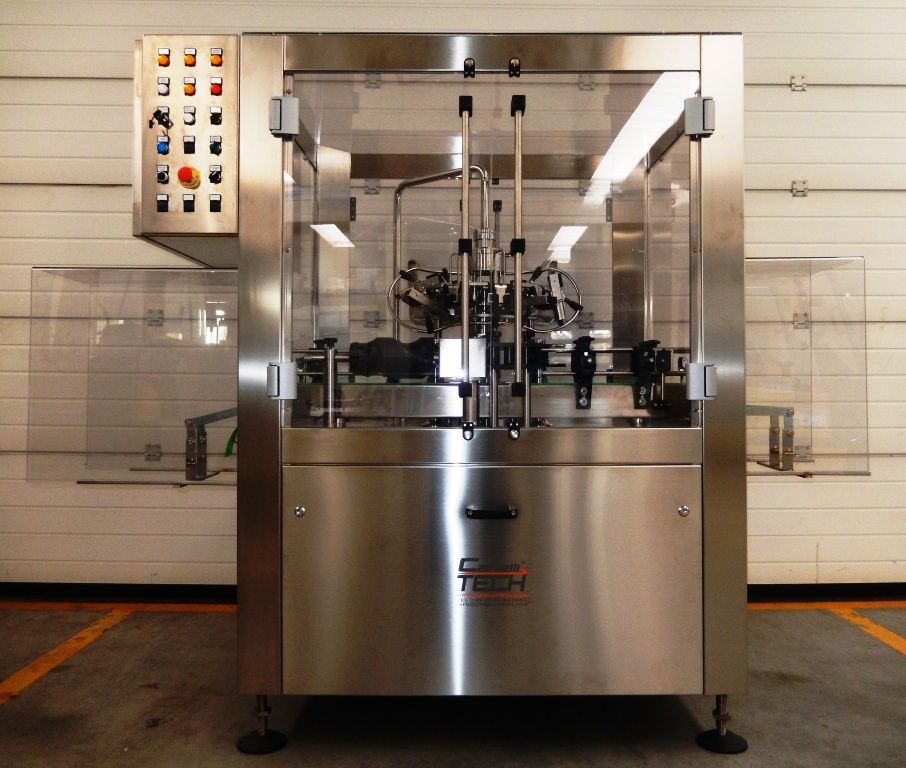

The ENOS linear labeling machine is equipped with a station for applying self-adhesive labels to cylindrical bottles. It features a DC stepper motor controlled by a microprocessor management board, and is suitable for labeling cylindrical bottles with diameters from 60 to 110 mm.
The machine is manufactured entirely from stainless steel, with selected aluminum components finished with anti-scratch and anti-corrosion coating.
Technical specifications
- Suitable bottle diameter: 60–110 mm
- Output: 600–1,500 bottles/hour
(max. 1,000 bottles/hour with rolling head)
Machine features
- Safety cover with plexiglass panel
- Independent feed cylinder – no replacement parts required for different bottle sizes
- Linear machine with labeling unit
- Labeling unit operated by stepper motor
- Labeling unit supplied together with loading table
- Height-adjustable labeling unit for easier positioning of different bottle formats
- Label release start signal controlled by a precision sensor
- Labeling speed synchronized with machine speed
- Fully constructed from stainless steel
- Aluminum components protected with anti-rust coating
Multiple versions are available, including configurations with additional working stations for various optional functions.
Video demonstrations:
ENOS linear labeling machine demo 1
ENOS linear labeling machine demo 2
ENOS linear labeling machine demo 3
ENOS linear labeling machine demo 4
Manufacturer: ENOS
