This semi-automatic labeling machine is available in versions with one or two labeling stations, featuring vertical bottle loading, and is designed for cylindrical bottles.

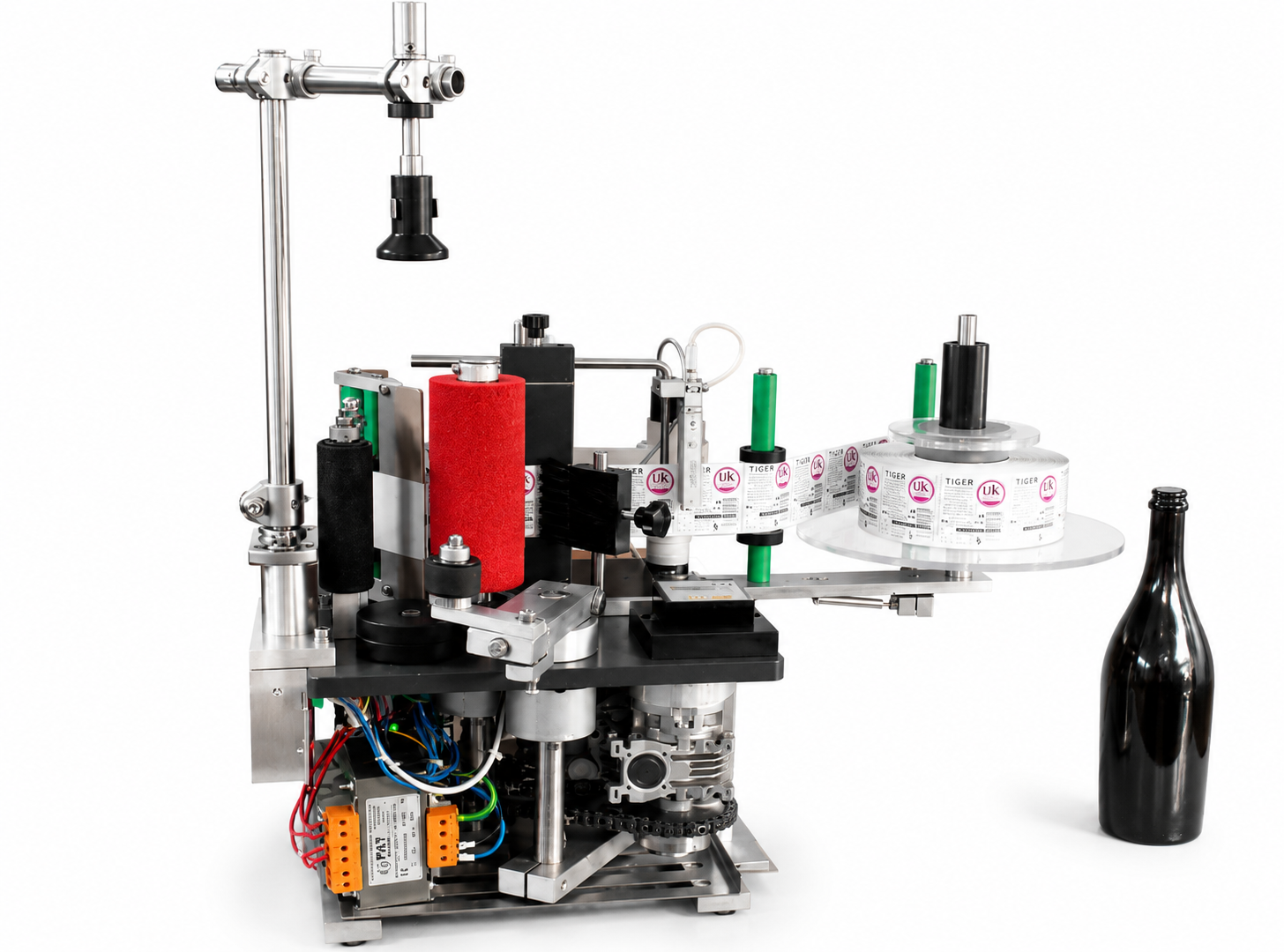

Semi-automatic labeling machine – Model S1 / M
The S1 / M model, equipped with one labeling station, is suitable for the following three functions:
- Front label application
- Back label application
- Front and back label application from the same reel
Technical specifications
- Output: approx. 500 bottles/hour (depending on operator speed)
- Maximum label web height: 140 mm
- Machine entirely made of stainless steel, with aluminum parts treated with anti-scratch and anti-corrosion coating
- Equipped with stepper motor mounted on the labeling station
- Power supply: 220V – 50 Hz – single phase

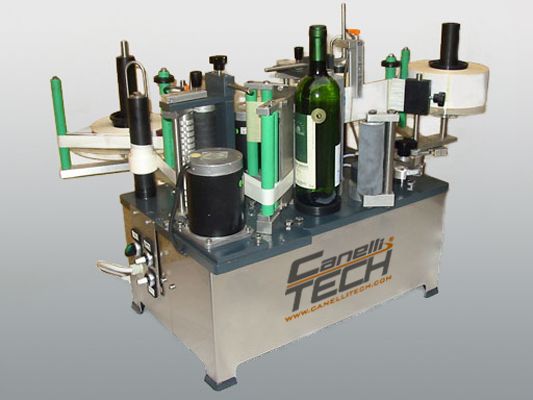

Semi-automatic labeling machine – Model S2 / M
The S2 / M model, equipped with two labeling stations, is suitable for the following three functions:
- Front label application
- Wrap-around label application (full bottle circumference)
- Front and back label application from separate reels
(first station for front label, second station for back label)
Technical specifications
- Output: approx. 600 bottles/hour (depending on operator speed)
- Maximum label height: 140 mm
- Maximum back label height: 140 mm
- Machine entirely made of stainless steel, with aluminum parts treated with anti-scratch and anti-corrosion coating
- Equipped with stepper motor mounted on the labeling station
- Power supply: 220V – 50 Hz – single phase
Operation
The operator places the bottle vertically on the dedicated support plate.
By pressing the start button, the two stations apply the front and back labels in sequence.
At the end of the cycle, the operator removes the labeled bottle and places the next one, repeating the operation.
Optional accessory for conical bottles
For labeling conical bottle formats, an additional device must be installed, consisting of:
- Adjustable angled rollers
- Anti-lift device

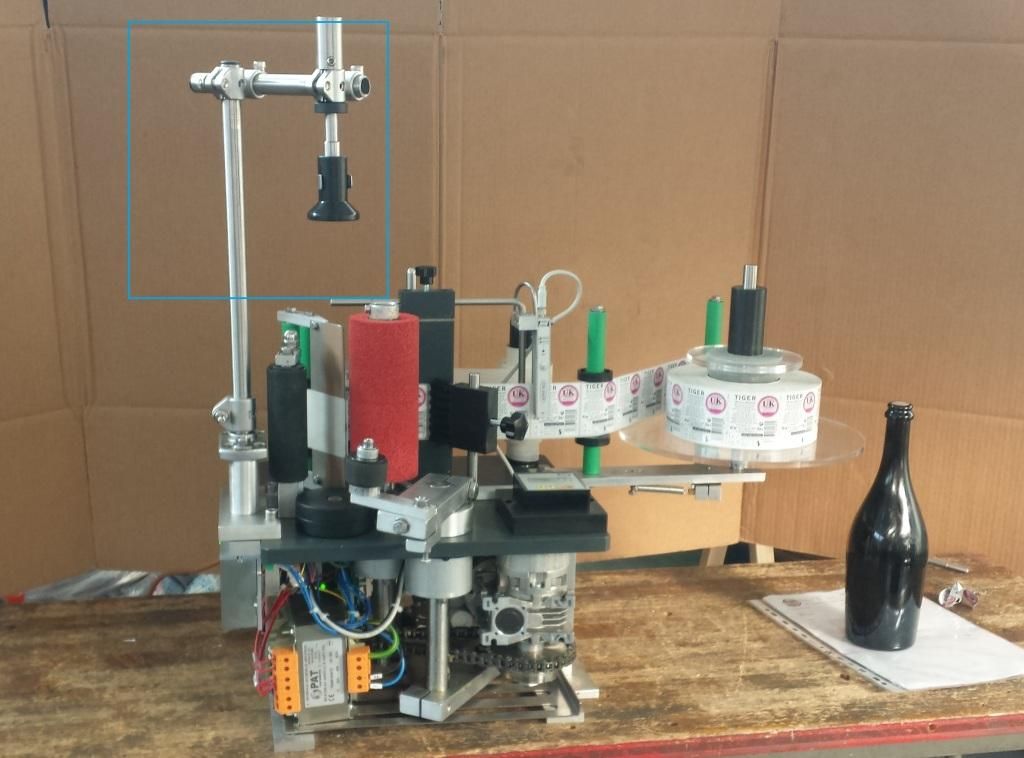

The anti-lift device (shown highlighted in blue in the product image) prevents the bottle from lifting during rotation while the label is being applied. This is especially important for conical bottles, which naturally tend to rise while rotating due to their tapered shape.
Manufacturer: ENOS
