The M2R labeling machine is a semi-automatic bench-top labeler designed for applying self-adhesive labels to cylindrical and square containers (with the appropriate accessory installed).

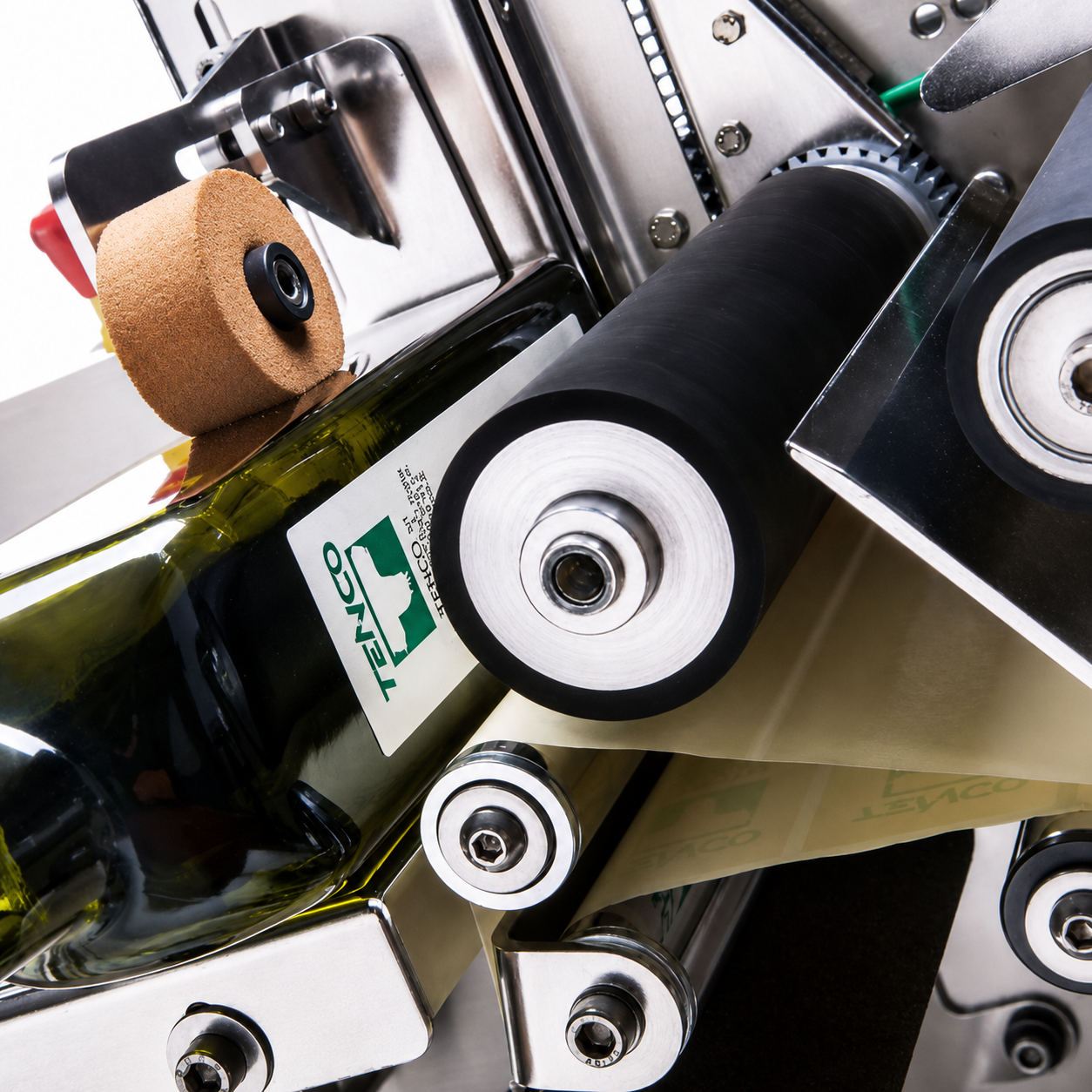

The bottle is positioned horizontally, and the machine can apply front and back labels in the same cycle from a single roll on cylindrical bottles.
Main features
- Suitable for cylindrical containers from 50 to 120 mm
- Label application tolerance: ± 3 mm

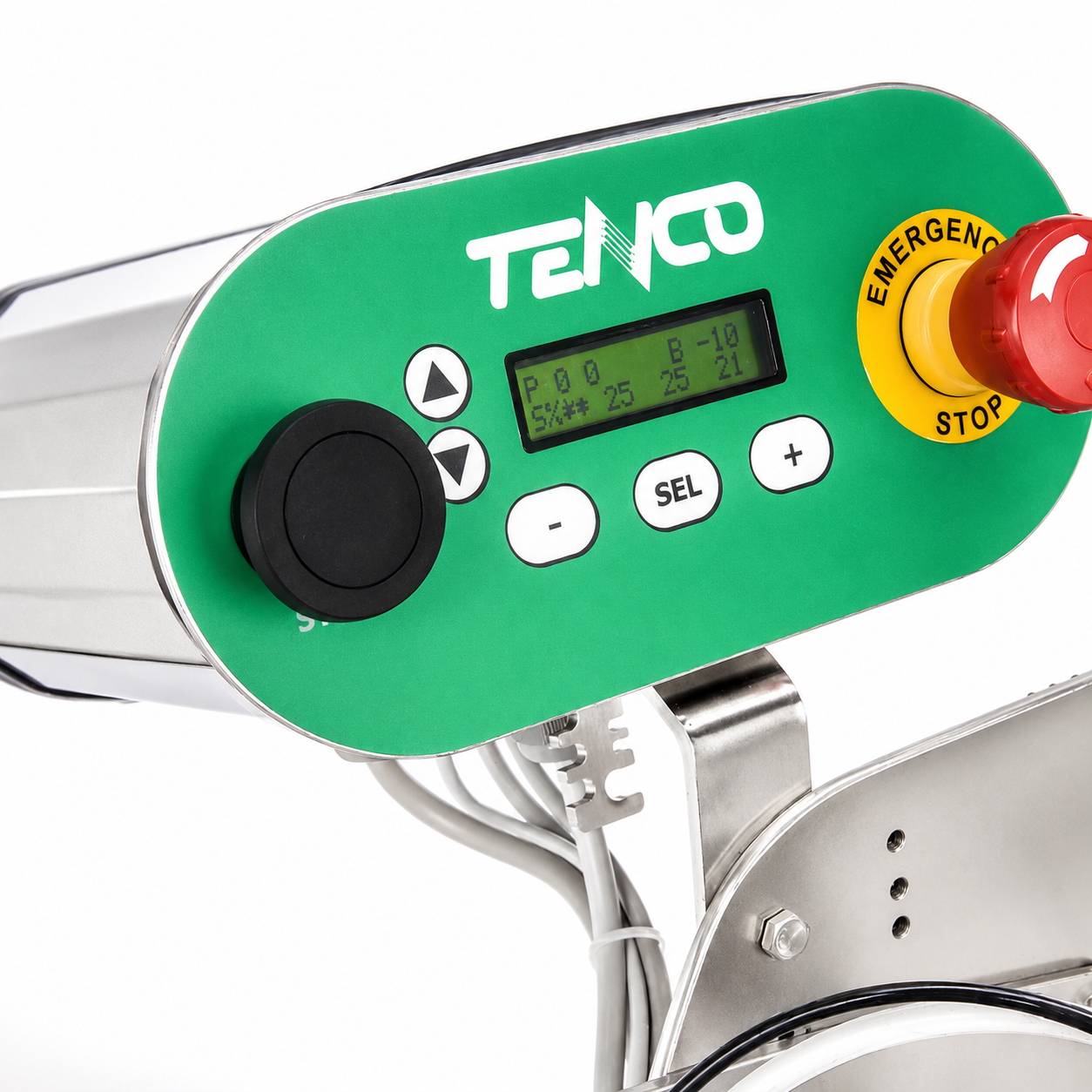

- Digital display for job programming
- 1 labeling station (front and back label from the same roll)
- Maximum reel outer diameter: 280 mm
The M2R semi-automatic labeling machine is supplied as standard for cylindrical bottles only. Optional accessories are available for labeling square or rectangular bottles.
It can also be used for labeling containers with lower mechanical resistance to pressure, such as PET or PE bottles.
An ultrasonic sensor can be integrated for transparent labels made of any material.
A thermal transfer printer/marker is also available as an optional accessory.
Technical specifications
- Output:
- Cylindrical bottles: up to 600 bottles/hour
- Square bottles with front & back label: up to 300 bottles/hour
- Suitable containers:
Cylindrical, square and rectangular bottles made of glass, PET and rigid plastic - Minimum bottle diameter: 25 mm
- Maximum bottle diameter: 160 mm
- Power supply: electric
- Dimensions: 620 × 360 × 530 mm (H)
- Weight: 25 kg
- Maximum reel diameter: 280 mm
- Reel core diameter: 76 mm
- Maximum label web height: 170 mm
- Minimum gap between labels: 3 mm
- Compressed air consumption: 10 Nl/min (only with marker)
- Available voltage: 240V – 50 Hz
Video demonstrations:
M2R labeling machine demo 1
M2R labeling machine demo 2
M2R labeling machine demo 3
Manufacturer: TENCO SRL
